Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage

Name: Servoassisted 22way Brass Solenoid Valve with DN 10 DN 50 Orifice and 24 VDC Operating Voltage
Brand: NBSANMINSE
Price: 1 USD

Wholesale Servo-assisted 2/2-way Brass Solenoid Valve with DN 10... DN 50 Orifice and 24 V/DC Operating Voltage from china suppliers

Brand Name : NBSANMINSE

Model Number : 6281

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10PCS

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Orifice : DN 10... DN 50

Operating voltage : 24 V/DC, 24 V/UC, 24 V/50…60 Hz, 230 V/UC, 230 V/50…60 Hz

Ambient temperature : Max. +55°C

Media : Gas,Water,Air,oil,steam

Standard or nonstandard : Standard

Working pressure : 0.15-0.8Mpa,0-7kgf/cm3,0.15~0.8 MPa

Voltage : DC12V DC24V AC24V AC110V AC220V AC380V,AC,±10%,DC

Contact Now

• Servo-assisted diaphragm with diameter of up to DN 50

• Vibration-proof, central screwed coil system

• Damped design for quiet closing

• Energy-saving double coil technology with kick and drop variant

• Explosion-proof versions

Can be combined with		Type description
	Type 2518 Cable plug, form A according to DIN EN 175301-803	The 6281 valve is a servo-assisted solenoid valve of the S.EV series. A minimum differential pressure is always required for the function of the valve. Various dia phragm material combinations and methods of operation are available depending on the application. The standard brass housing satisfies all European drinking water requirements. Dezincification-resistant brass is available for other markets. The housing offering is rounded out by a stainless steel version. To reduce power consumption in operation, coils with "Kick and Drop" (KD) electronics assembly (double coil technology) are available. The valve can be equipped with manual override for easy maintenance and commissioning. NEMA 4X is available on request.
	Type 2509 Cable plug, form A according to DIN EN 175301-803

1.General technical data
Product properties

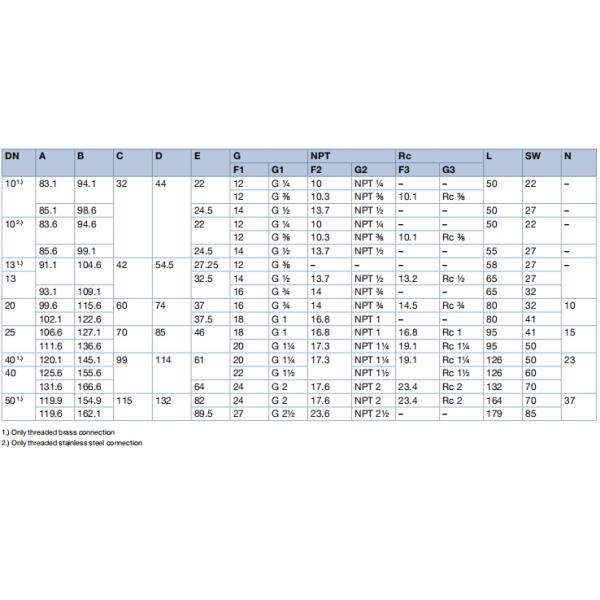

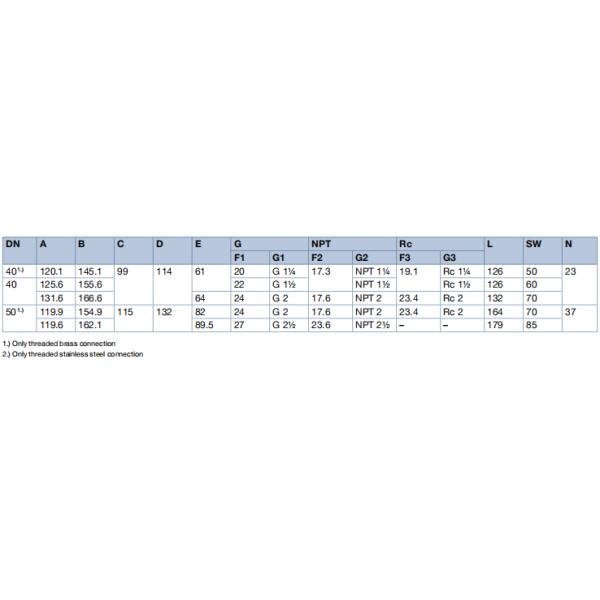

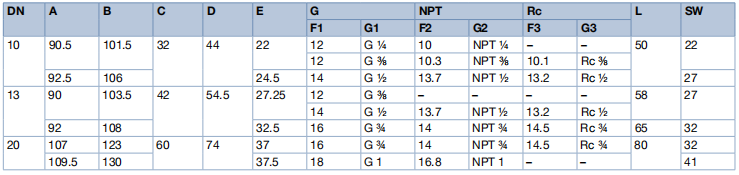

Dimensions	Further infomation can be found in chapter "5.Dimensions"on page 7.
Material
Seal	NBREPDM,FKM
Body	Brass acc.to DIN EN 50930-6,stainless steel (dezincification resistant on request)
Inner valve parts	Stainless stee,Brass,Plastic(PPS)
Orifice	DN 10...DN 50
Circuit function	Further infomation can be found in chapter “2.Circuit functions”on page 4.
Themal insulation class of solenoid coil	Polyamide coil class B Epoxy coil class H
Performance data
Duty cycle	100%continuous operation
Switching time⁴	Opening:0.1.….1.5 s Closing:0.2...4s
Electrical data
Operating woltage	24V/DC,24VUC,24V/50...60 Hz,230 VUC,230V/50...60Hz
Power consumption	Further infomation can be found in chapter "6.Performance specifications"on page 12.
Voltage tolerance	±10%
Medium data
Operating medium
NBR	Neutral fluids (e.g.compressed air,water)
EPDM	Oiland fat-free fluids,hot water,aceton,aqueous alkali solution
FKM	Hot air,per-solution
Medium temperature
NBR	-10.…+80℃
EPDM	-30*...90℃(with epoxy coil to+100℃)
FKM	0℃…90℃with epoxy coil to+120℃)
Process/Port connection &communication
Bectrical connection	·Cable plug Type 2518▶,fomA acoording to DIN EN 175301-803 Further infomation can be found in chapter"“Cable plug Type 2518,form Aaccording to DIN EN 175301-803"on page 20.
	·Cable plug Type 2509▶,fomA acoording to DIN EN 175301-803
	Further infomation can be found in chapter"“Cable plug Type 2509,form Aaccording to DIN EN 175301-803"on page 20.
Approvals and conformities
Directives CE,EAC
Degree of protection	IP65 with cable plug,cable connection and terminal box
Explosionprotection	Further infomation can be found in chapter"3.4.Explosion protection"on page 4.

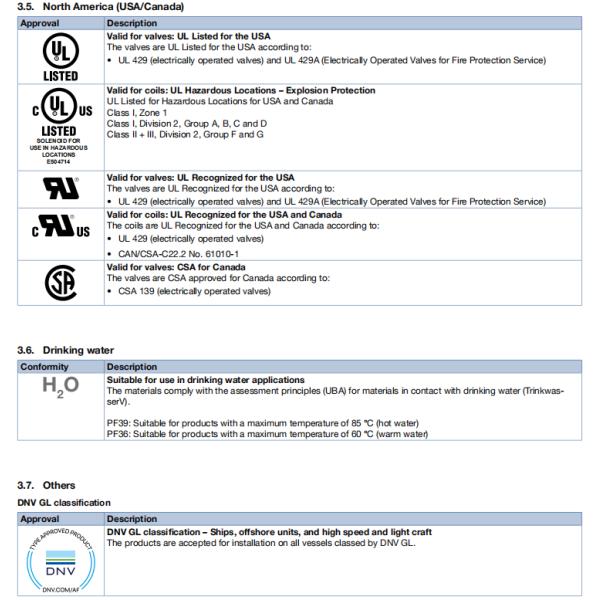

North America(USA/Canada)	Further infomation can be found in chapter"3.5.North America (USA/Canada)"on page 5.
Drinking water	Further infomation can be found in chapter "3.6.Drinking water"on page 5.
Environment and installation
Installation	As required,preferably with actuator upright
Ambient temperature	Max.+55℃
1.) Measurement at +20 °C, 6 bar at the valve outlet, opening: pressure build-up 0…90%, closing: pressure reduction 100…10%
