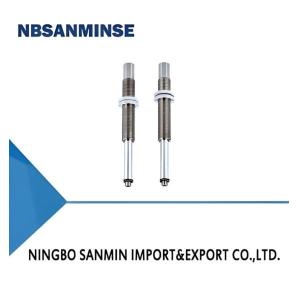

PSPE Series Small and Light Level Compensator

Brand Name : NBSANMINSE

Model Number : PSPE-I10M5M-M10

Place of Origin : CHINA

MOQ : 10PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Box

Certification : ISO9001

Price : Negotiation

Payment Terms : L/C,T/T

Buffer style : I - Built-in spring

Rotary type : Nil - Vertical rotating

Vacuum port connection : Nil - Default

Suction cup connection : M5F - M5×0.8 female thread

Mountingthread : M8 - M8×1

Warranty : 1 Year

Contact Now

Features
◇ Level compensator with built-in spring, small elasticity
◇ Small size and light weight
◇ The guide rod is made of stainless steel
◇ Oilless wear-resistant bushing is built in the guide sleeve
Advantages
◇ Avoid pollution and external mechanical force, flexible contact
◇ Suitable for fast handling in small space
◇ Resistant to environment, corrosion and abrasion
◇ Improve the life time of the products and reduce the noise of
the products
◇ Ensure the accurate positioning of the workpieces
Applications

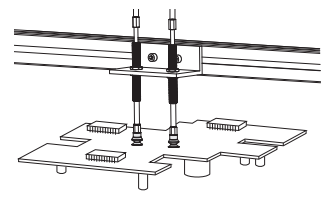

◇ Suitable for electronic industry
◇ Suitable for handling light and small workpieces with flexible
contact
◇ Suitable for handling workpieces with height difference
◇ The non-rotating level compensator is suitable for the working
condition requiring accurate positioning
PSPE Series Small and Light Level Compensator
Structure
◇ (1) Vacuum generator connection
◇ (2) Guide sleeve
◇ (3) Mounting nut
◇ (4) Guide rod
◇ (5) Suction cup connection
PSPE Series Small and Light Level Compensator
PSPE Series Small and Light Level Compensator
Selection-Vertical direction
Model/Connection thread
M5M RM5M M5F MBM MBF
PSPE-I10M5M-M10 PSPE-I10RM5M-M10 PSPE-I10M5F-M10 PSPE-I10MBM-M14 PSPE-I10M8F-M14
PSPE-I20M5M-M10 PSPE-I20RM5M-M10 PSPE-I20M5F-M10 PSPE-I20MBM-M14 PSPE-I20M8F-M14
PSPE-I30M5M-M10 PSPE-I30RM5M-M10 PSPE-I30M5F-M10 PSPE-I30MBM-M14 PSPE-I30M8F-M14
PSPE-I40M5M-M10 PSPE-I40RM5M-M10 PSPE-I40M5F-M10 - -
PSPE-I50M5M-M10 PSPE-I50RM5M-M10 PSPE-I50M5F-M10 PSPE-I50MBM-M14 PSPE-I50M8F-M14

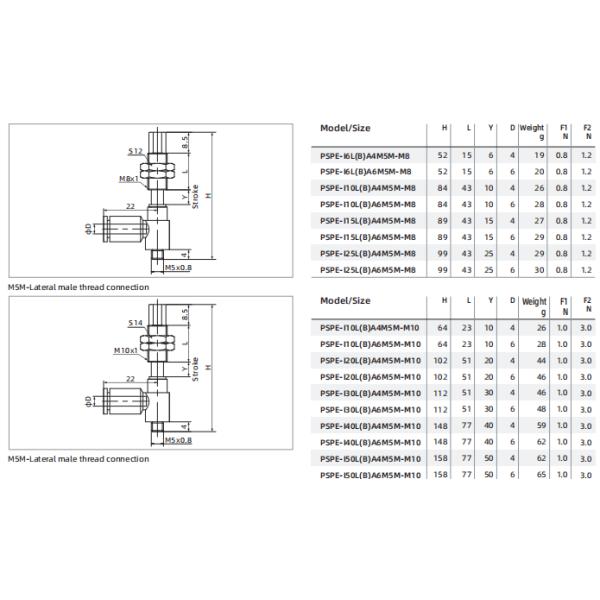

Selection-Lateral direction
Model/Connection thread
LA4M5M LA6M5M BA4M5M BA6M5M
PSPE-I6LA4M5M-M8 PSPE-I6LA6M5M-M8 PSPE-I6BA4M5M-M8 PSPE-I6BA6M5M-MB
PSPE-I10LA4M5M-M8 PSPE-I10LA6M5M-MB PSPE-I10BA4M5M-MB P5PE-I10BA6M5M-M8
PSPE-I15LA4M5M-M8 PSPE-I15LA6M5M-MB PSPE-I15BA4M5M-MB PSPE-I15BA6M5M-M8
PSPE-I25LA4M5M-M8 PSPE-I25LA6M5M-MB PSPE-I25BA4M5M-MB PSPE-I25BA6M5M-M8
PSPE-I10LA4M5M-M10 PSPE-I10LA6M5M-M10 PSPE-I10BA4M5M-M10 PSPE-I10BA6M5M-M10
PSPE-I20LA4M5M-M10 PSPE-I20LA6M5M-M10 PSPE-I20BA4M5M-M10 PSPE-I20BA6M5M-M10
PSPE-I30LA4M5M-M10 PSPE-I30LA6M5M-M10 PSPE-I30BA4M5M-M10 PSPE-I30BA6M5M-M10
PSPE-I40LA4M5M-M10 PSPE-I40LA6M5M-M10 PSPE-I40BA4M5M-M10 PSPE-I40BA6M5M-M10
PSPE-I50LA4M5M-M10 PSPE-I50LA6M5M-M10 PSPE-I50BA4M5M-M10 PSPE-I50BA6M5M-M10
PSPE Series Small and Light Level Compensator
M5F-Vertical female thread connection
PSPE Series Small and Light Level CompensatorPSPE Series Small and Light Level Compensator
