SP2F Series Thin Lip Flat Suction Cup

Name: SP2F Series Thin Lip Flat Suction Cup
Brand: NBSANMINSE
Price: 1 USD

Wholesale SP2F Series Thin Lip Flat Suction Cup from china suppliers

Brand Name : NBSANMINSE

Model Number : SP2F10

Place of Origin : CHINA

MOQ : 100PCS

Supply Ability : 10000PCS

Delivery Time : 5-30days

Packaging Details : Plastic bag

Diameter : 10 - φ10mm

Material & Hardness : N- NBR

Connection thread : Nil - Suction cup only

Pull-out force N : 3.2

Recommended hose dia. mm : 4

Contact Now

Features

◇ Thin lip, flat and short stroke

◇ With support structure at the bottom

Advantages

◇ Good sealing for handling of thin and flat workpieces

◇ Prevents fold during handling of paper and thin film

Applications

◇ Suitable for occasions that has high requirements for mark on

product surface during handling, such as paper, plastic film,

aluminum foil and copper foil

Structure

◇ Split structure for easy replacement of wearing parts

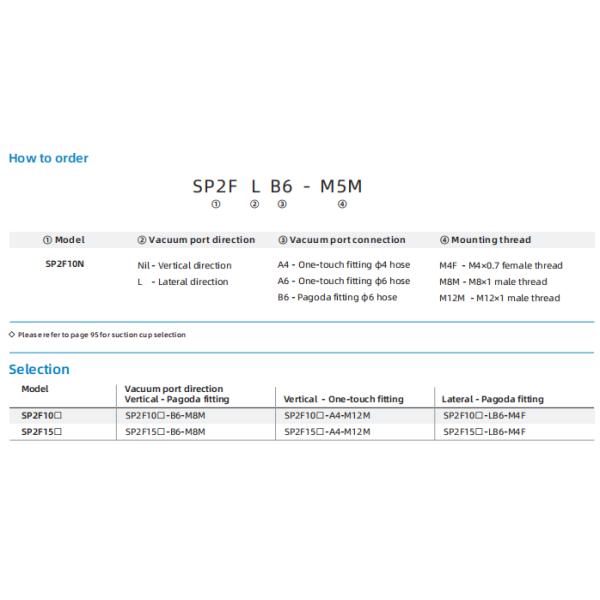

How to order

◇ Note: Testing vacuum level -60kPa, workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.

The data may be different according to different workpiece surfaces.Recommend the length of vacuum hose to be as short as possible, max 2m

Structure

◇ Consisting of replacement suction cup and locking fitting

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port, Pagoda fitting or one-touch fitting for

connection,male thread for mounting

◇ Lateral vacuum port, Pagoda fitting for connection, female

thread for mounting

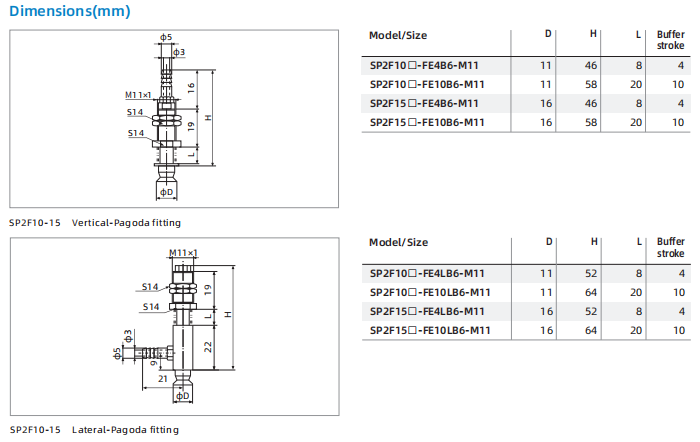

Structure

◇ Consisting of replacement suction cup(3) and level compensator

◇ Plug-in fitting for suction cup

◇ Vertical vacuum port(1), male thread for mounting

◇ Lateral vacuum port(2), male thread for mounting
